Super Duplex Steel

Super Duplex stainless, is a mixed microstructure of austenite and ferrite (50/50) which has improved strength over ferritic and austenitic steel grades. The main difference is that Super Duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance than standard duplex grades. The balanced duel phase microstructure combines high strength with cost effective corrosion resistance particularly in high chloride environments. Super Duplex has the same benefits as its counterpart – it has lower alloying costs when compared with similar ferritic and austenitic grades with equipment corrosion resistance in chloride containing environments due to the material’s increased tensile and yield strength. In many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance.

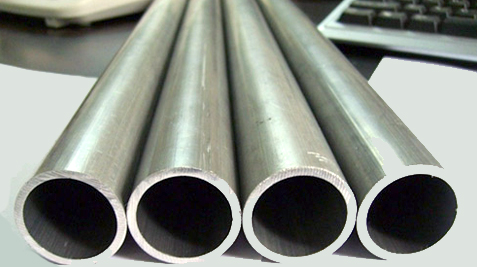

Super Duplex Steel Pipes & Tubes Specification

Standard : ASTM A790 / ASME SA790

Size : 1/2" TO 48" NB

Grade :UNS NO. S32750 / S32760 / S32950

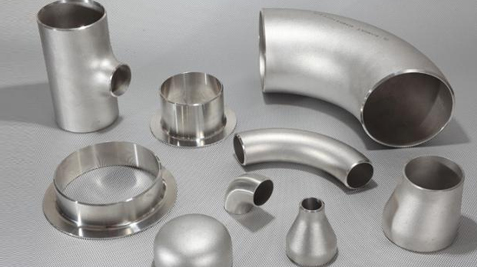

Super Duplex Steel Pipe Fittings Specification

Standard : ASTM / ASME A815 / SA815

Size : 1/2" to 24" NB to 24″NB in Sch 10S, 40S, 80S, 160s, XXS

Grade : UNS NO. S32750 / S32760 / S32950

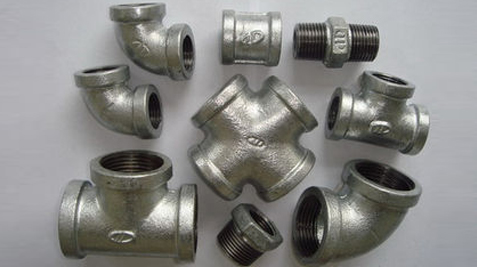

Super Duplex Steel Forged Fittings Specification

Standard : ASTM A182 / ASME SA182

Size : : 1/2"NB TO 4"NB IN(Socketweld & Screwed-Threaded)

Grade : UNS NO. S32750 / S32760 / S32950

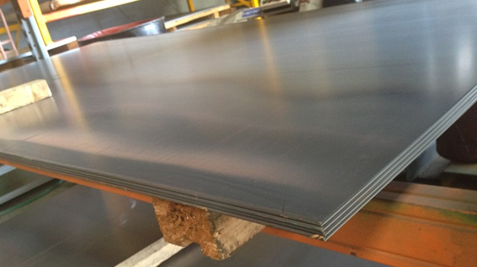

Super Duplex Steel Sheets And Plates Specification

Standard : ASTM A240 / ASME SA240

Size : 1 MM To 200 MM Thk In 1000 MM To 3000 MM Width x 2500 MM/ 5000 MM / 10000 MM Length & In Coil Form

Thickness : 0.1 mm to 12 mm Thk.

Form : Coils, foils, shim sheet, perforated sheet, strip, flats, blank (circle), ring (flange), etc.

Grade : UNS NO. S32750 / S32760 / S32950

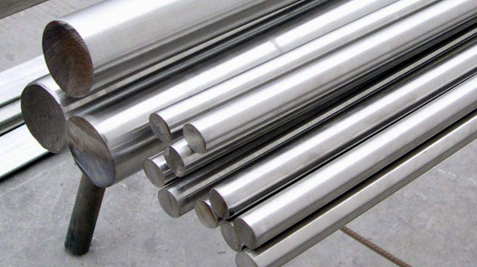

Super Duplex Steel Bars and Rods Specification

Standard :ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

Range :10 mm To 100 mm Dia in 100 mm TO 6000 mm Length.

Size :Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

Form :Round Square Hex (A/F) Bush Rectangle Flat

Grade :UNS NO. S32750 / S32760 / S32950

Super Duplex Steel Fasteners Specification

Standard : ASTM A182 / A240, ASME SA182 / SA240

Size : M02 to M30

Grade : UNS NO. S32750 / S32760 / S32950

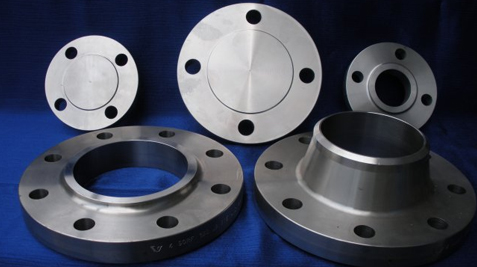

Super Duplex Steel Flanges Specification

Standard : ASTM A182 /ASME SA182

Size : 1/2” to 48”

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc.

Grade : UNS NO. S32750 / S32760 / S32950
